Mobile Dental Cart
Combi-Cart Clinic
Continuous operation
All-in-one cart
Silent oil-free compressorFull performance
Suction 220 L/min
Plug & Play
All-in-one

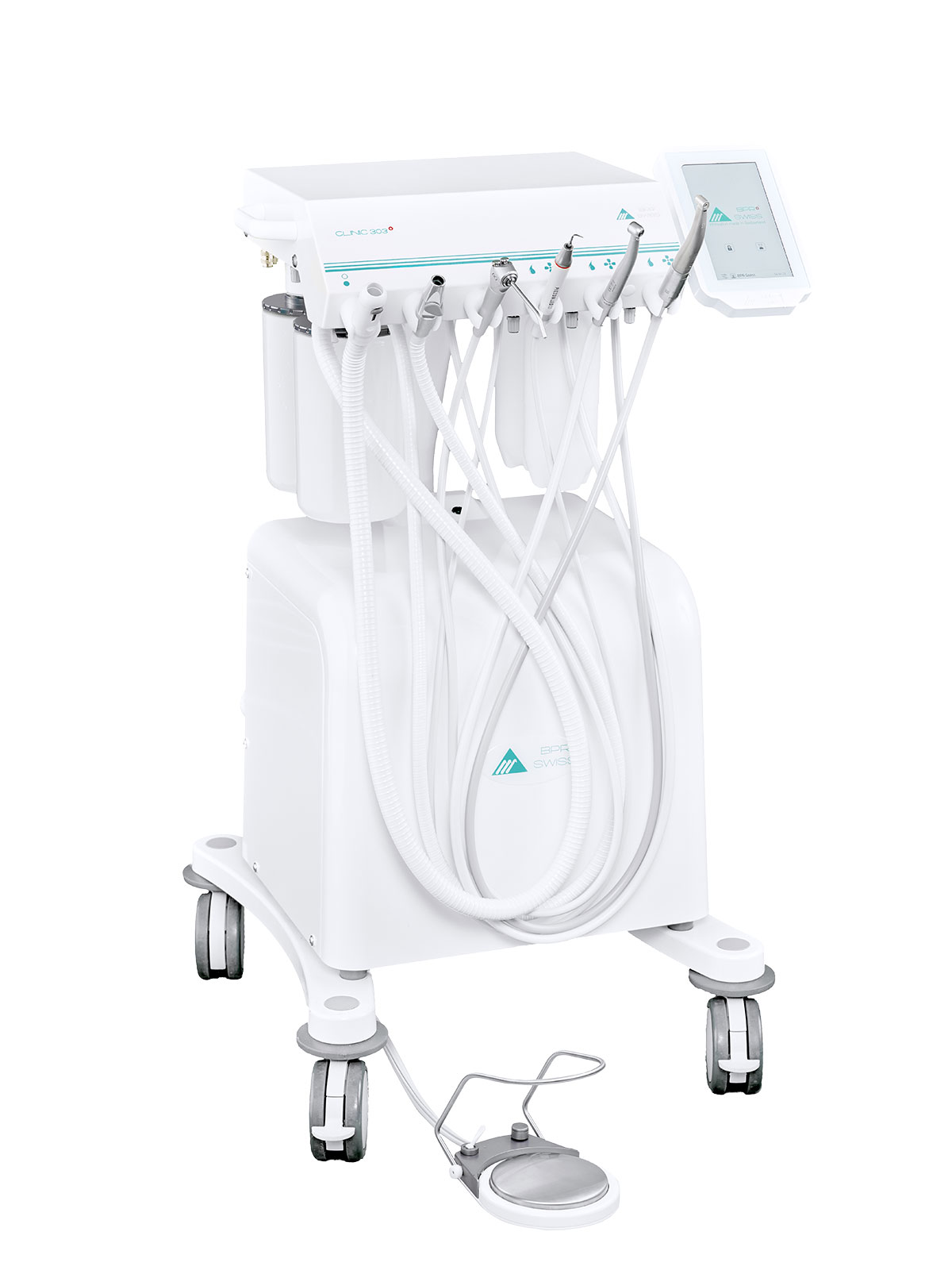

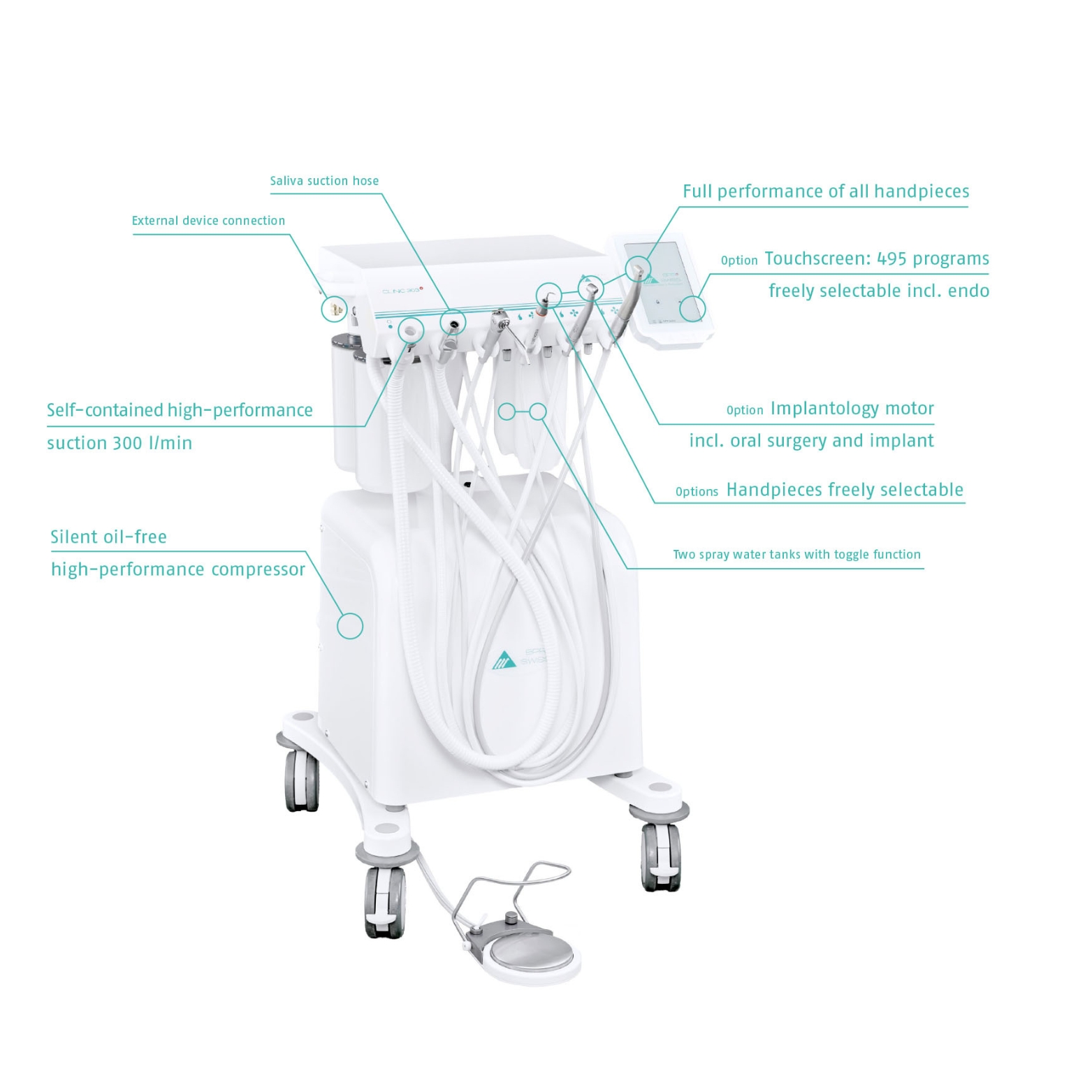

The COMBI-CART CLINIC combines 1 three-way-syringe, 3 treatment instruments and 2 suction devices including compressor and suction machine on one single cart! Aside from treating your patients in your dental clinic, it offers you the flexibility to treat them in hospitals, retirement homes or other institutions. You can easily move your COMBI-CART CLINIC from one room to the next. No installation needed (plug-and-play)! To activate and use your COMBI-CART CLINIC simply plug in the power cord. The silent COMBI-CART CLINIC, designed and manufactured in Switzerland, in addition to flexible application, is also marked by high performance, little need to apply maintenance, and easy use. The high performance suction (220 l/min) with BPR Swiss patent-pending technology is complemented by instruments thoroughly efficient even with continuous operation. The great comfort of the COMBI-CART CLINIC is rounded of by the convenience of a very silent compressor (48 dB!) and useful connections for external devices.
Features
- Autonomously functioning cart with integrated silent oil-free compressor, aspirator, and spray water tanks
- High quality stainless steel housing
- 1 Three-way syringe (air/water/spray) with sterilisable tips
- Integrated spray water system for syringe and instruments (check valve prevents the back flow of water)
- 3 instrument hoses with light (6-hole connector)
- Instrument hoses detachable
- Spray adjustment regulators for each instrument
- 1 Saliva/Surgical suction hose including oral-dry-cup
- 1 High-performance suction hose 220 l/minContinuously adjustableWith the patent-pending BPR Swiss technology
- 2 Spray water tanks: 2 x 0.75 litre
- 2 Suction fluid containers: 2 x 2 litres (automatic overflow protection)
- Foot control with spray on/off function and chip
- Integrated compressor: Capacity 75 l/min at 4 bar; Max. pressure: 8 bar; Sound pressure level: 48 dB; Compressed air tank: 4 litres
Technical Data
- Air consumption instruments: 35-55 l/min
- Operating pressure: 2.5-3.5 bar
- Each instrument is individually adjustable
- Total weight Combi-Cart Clinic: approx. 55.0 kg
- Dimensions: 535mm x 580mm x 960mm
Warranty: 2 years
Options: Peristaltic pump, electric micromotor with light including display and 30 programs, electric scaler, turbine, air motor, polymerisation lamp, tray etc
Video
Comparison
Denta-Cart Clinic
Continuous operation
Full performance
Suction 220 L/min
Freely selectable configuration
Suction/instruments on one cart
For the flexible dentist
The DENTA-CART CLINIC combines 1 three-way-syringe, 3 treatment instruments and 2 suction devices (integrated suction machine) on one single cart! Aside from treating your patients in your dental clinic, it offers you the flexibility to treat them in hospitals, retirement homes or other institutions. You can easily move your DENTA-CART CLINIC from one room to the next. To activate and use your DENTA-CART CLINIC simply connect it to an air source and plug it in the power cord. The DENTA-CART CLINIC, designed and manufactured in Switzerland, in addition to flexible application, is also marked by high performance, little need to apply maintenance, and easy use. The high performance suction (220 l/min) with BPR Swiss patent-pending technology is complemented by instruments thoroughly Efficient even with continuous operation. The great comfort of the DENTA-CART CLINIC is rounded of by the convenience of external removable instrument hoses and useful connections for external devices.
Features
- High quality stainless steel housing
- 1 Three-way syringe (air/water/spray) with sterilisable tips
- Integrated spray water system for syringe and instruments (check valve prevents the back flow of water)
- 3 instrument hoses with light (6-hole connector)
- Instrument hoses detachable
- Spray adjustment regulators for each instrument
- 1 Saliva/Surgical suction hose including oral-dry-cup
- 1 High-performance suction hose 220 l/min (continuously adjustable) with the patent-pending BPR Swiss technology
- 2 Spray water tanks: 2 x 0.75 litre
- 2 Suction fluid containers: 2 x 2 litres (automatic overflow protection)
- Foot control with spray on/off function and chip
- Compressed air filter regulator with hose (6 x 4 mm) for air connection
Technical Data
- Air consumption instruments: 35-55 l/min
- Operating pressure: 2.5-3.5 bar
- Each instrument is individually adjustable
- Total weight Denta-Cart Clinic: approx. 22.0 kg
- Dimensions: 535mm x 580mm x 850mm
Warranty: 2 years
Options: Peristaltic pump, electric micromotor with light including display and 30 programs, electric scaler, turbine, air motor, polymerisation lamp, tray etc.
Comparison
P3-Cart
Continuous operation
Full performance
Plug-and-Play
Freely selectable configuration
Silent oil-free compressor
Plug and Play
The elegant P3-CART treatment cart requires no installation and is totally mobile. The instruments can be freely selected and are fully efficient even with continuous operation. To use the P3-CART simply insert the power plug! The P3-CART is equipped with two spray water tanks. If a spray water tank becomes empty, you can change to the second tank with a switch, continuing your treatment without interruption. A switch allows you to use water from the spray water bottles or from an external source. The oil-free compressor of the P3-Cart enables to work throughout the day without interruption and is distinguished by its remarkably quiet operation (48 dB!).
Features
- Autonomously functioning cart with integrated silent oil-free compressor and spray water tanks
- High quality stainless steel housing
- 1 Three-way syringe (air/water/spray) with sterilisable tips
- Integrated spray water system for syringe and instruments (check valve prevents the back flow of water)
- 4 instrument hoses with light (6-hole connector)
- Instrument hoses detachable
- Spray adjustment regulators for each instrument
- Foot control with spray on/off function and chip
Technical Data
- Air consumption instruments: 35-55 l/min
- Operating pressure: 2.5-3.5 bar
- Each instrument is individually adjustable
- 2 Spray water tanks: 2 x 0.75 litres
- Total weight: approx. 53 kg
- Dimensions: 535mm x 580mm x 960mm
- Integrated compressor: Capacity 75 l/min at 4 bar; Max. pressure: 8 bar; Sound pressure level: 48 dB; Compressed air tank: 4 litres
Warranty: 2 years
Options: Peristaltic pump, electric micromotor with light including display and 30 programs, electric scaler, turbine, air motor, polymerisation lamp, tray etc.
Comparison
Denta-Cart 404
Continuous operation
Full performance of instruments
Freely selectable configuration
Pure freedom
The elegant DENTA-CART 404 is totally mobile and simply has to be plugged in and connected to an air supply. A switch allows you to use water from the spray bottles or from an external source.
Features
- High quality stainless steel housing
- 1 Three-way syringe (air/water/spray) with sterilisable tips
- Integrated spray water system for syringe and instruments (check valve prevents the back flow of water)
- 4 instrument hoses with light (6-hole connector)
- Instrument hoses detachable
- Spray adjustment regulators for each instrument
- Foot control with spray on/off function and chip
Technical Data
- Air consumption instruments: 35-55 l/min
- Operating pressure: 2.5-3.5 bar
- Each instrument is individually adjustable
- 2 Spray water tanks: 2 x 0.75 litre
- Total weight: approx. 21 kg
- Dimensions: 535mm x 580mm x 850mm
Warranty: 2 years
Options: Peristaltic pump, electric micromotor with light including display and 30 programs, electric scaler, turbine, air motor, polymerisation lamp, tray etc.
Comparison
P3-Vac
Plug and Play
The stainless steel P3-VAC mobile suction unit offers great flexibility and ease of use. The P3-VAC is fitted with three suction hoses. The cuspidor bowl is easy to remove and sterilise. The P3-VAC is totallly standalone - just plug in the power cord.
Features
- High-quality stainless steel housing
- 1 Saliva suction hose
- 1 High-performance suction hose
- 1 High-performance suction hose with ceramic cuspidor
Technical Data
- Max suction capacity: 1’100 l/min
- Sound pressure level: 48 dB
- Suction fluid container: 3 litres
- Total weight: approx. 38 kg
- Dimensions: 460 x 850 x 940 mm
Warranty: 2 years
Comparison
Denta-Vac
Safe and independent
The stainless steel DENTA-VAC mobile suction unit offers great flexibility and ease of use. The DENTA-VAC is fitted with four suction hoses. Compared to conventional suction units it has an independent suction in addition to the three suction hoses (one with cuspidor) which are operated by an external suction motor. If the external motor breaks down, the operation or treatment can continue uninterrupted thanks to this independent suction. The cuspidor bowl is easy to remove and sterilise.
Features
- High-quality stainless steel housing
- 1 Three-way syringe (air/water/spray) with sterilisable tips
- Self-contained clean water system for the syringe and the filling of water glass
- 1 Saliva suction hose
- 1 High-performance suction hose
- 1 High-performance suction hose with cuspidor made of sterilisable steel
Technical Data
- Air consumption for suction: 25 l/min
- Operating pressure: 4.5 bar
- Spray water tank: 1.5 litres
- Independent vacuum suction with 2 litre suction fluid container for sur - gery, and upon interruption of the central aspirator (including automatic overflow prevention)
- Total weight: approx. 21 kg
- Dimensions: 535mm × 580mm × 850mm
Warranty: 2 years
