CS 7600 Imaging Plate System

The intelligent system for shared use

Incredibly versatile imaging capabilities and a fully automated workflow make the CS 7600 the perfect choice for multi-user practices.

Intelligent & Secure Workflow

The “Scan & Go” technology allows you to electronically identify plates prior to an exam. During the scan, the system automatically recognises these images and sends them to the appropriate computer and patient file without any interaction with the user.

Always Available

Designed to promote shared use, the CS 7600 is always ready to go. There’s no need to reserve the unit or block it from others while you are scanning. To eliminate bottlenecks, multiple users can use the system for multiple patients—all at the same time.

User-Friendly Operation

The CS 7600’s built-in color monitor provides clear, easy-to follow instructions and messages, as well as the ability to preview images directly on the unit for instant feedback on the success of the exam.

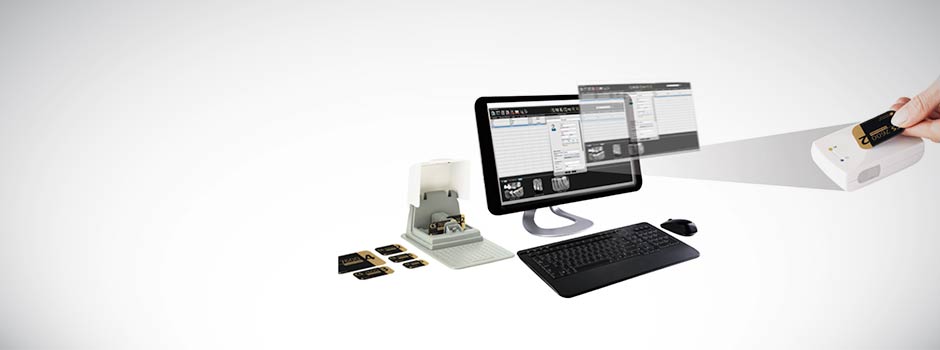

“Scan & Go” technology

Plates are identified electronically prior to the exam. With one tap of the plate, both the patient’s and practitioner’s information is automatically embedded into the plate and saved. Once identified, plates are automatically recognized during scanning. Images are automatically routed and sent to the appropriate computer and patient file with minimal user interaction required.

Compare the range

Model	CS 7200	CS 7600
Use	Chairside / Single user	Shared / Multi-users
Max. true resolution	17 lp/mm	17 lp/mm
Plate sizes	0-1-2	0-1-2-3-4
Examinations	Pediatric / Periapical Bitewing	Pediatric / Periapical Bitewing Long Bitewing True occlusal
Time to first image	8 sec.	5 sec.
LCD screen with user instructions	No	Yes

View the Carestream CS 7600 Brochure

View PDF
