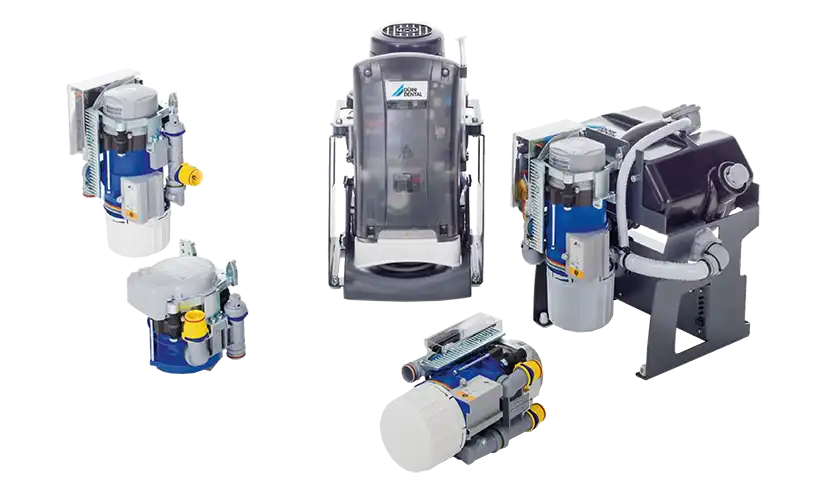

Dürr Dental Amalgam Separators
Powerful and reliable separation
DÜRR DENTAL separation systems set standards. Not only can they be relied upon to separate secretion and solids, they also operate at a pleasantly low volume. No wonder then that they are an integral ex-works component of the treatment units being produced by leading manufacturers. But retrofitting is also very straightforward.
Reliable separation systems guarantee the highest performance
Reliable separation for dry suction systems
The CS 1 Combi-Sepamatic and the CAS 1 Combi-Separator from DÜRR DENTAL are a valuable addition to any treatment unit. The units impress with their quiet yet powerful drives and can effortlessly manage even treatments that last several hours and involve large amounts of fluids. The two-stage separation effectively prevents blood foam from being carried along during aspiration, thus protecting the dry suction unit that is connected downstream. The CS 1 Combi-Sepamatic is purely an automatic separator. The CAS 1 Combi-Separator combines air/water separation and amalgam separation. Both units can either be integrated in the treatment unit or installed externally.
Compact
Enables flexible installation in any treatment unit
Safe
High degree of foam compatibility due to two-step separation & high reliability due to centrifugal technology
Quiet
Low-noise, vibration-free operation
Network compatible
Communication possible with the treatment unit via CAN bus or with the DÜRR DENTAL practice software

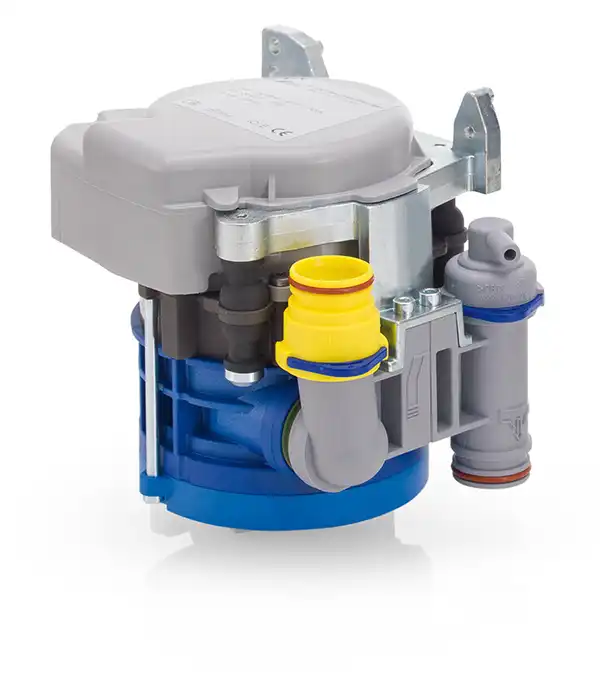

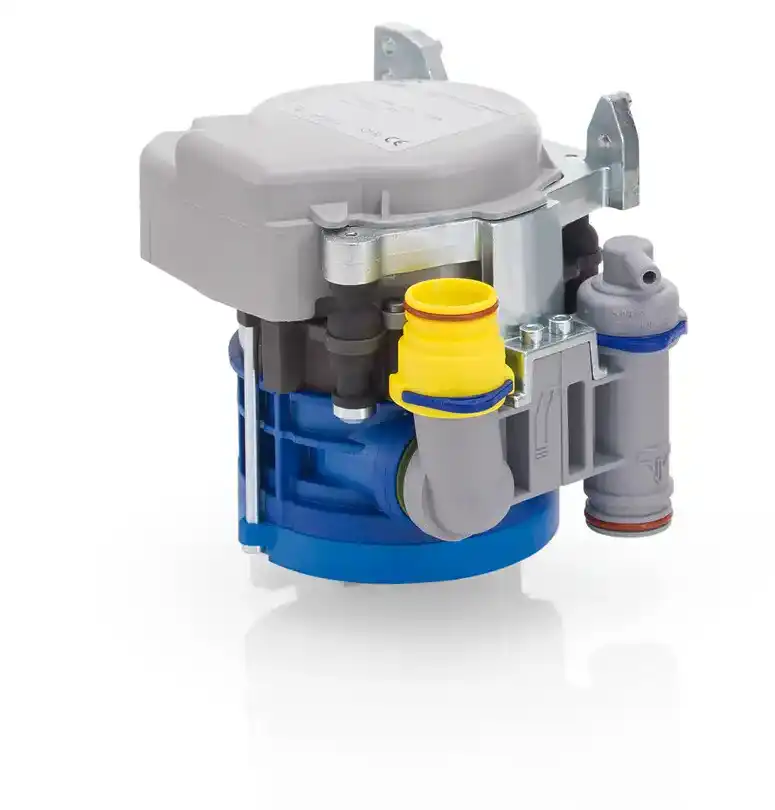

CS 1 Combi-Sepamatic
CS 1 Combi-SepamaticThe drive system of the CS 1 is powerful enough to enable the suction system to cope even with treatments involving high volumes of fluid. The two-stage separator prevents blood foam from being carried along during aspiration, thus protecting the connected dry suction unit.
| Dimensions (H x W x D cm) | 12.5 x 15 x 12 |
| Noise level dB(A) | 49 |
| Max. vacuum (mbar) | 160 |
| Voltage (V) | 24 V AC; 24 - 36 V DC |
| Frequency (Hz) | 50/60 |
| Weight (kg) | ~1,4 |
| Separation rate (%)1 | - |
| 1. Separation rates measured by TÜV Essen (Technical Inspection Association) in accordance with the standard German test at the maximum flow rate. | |

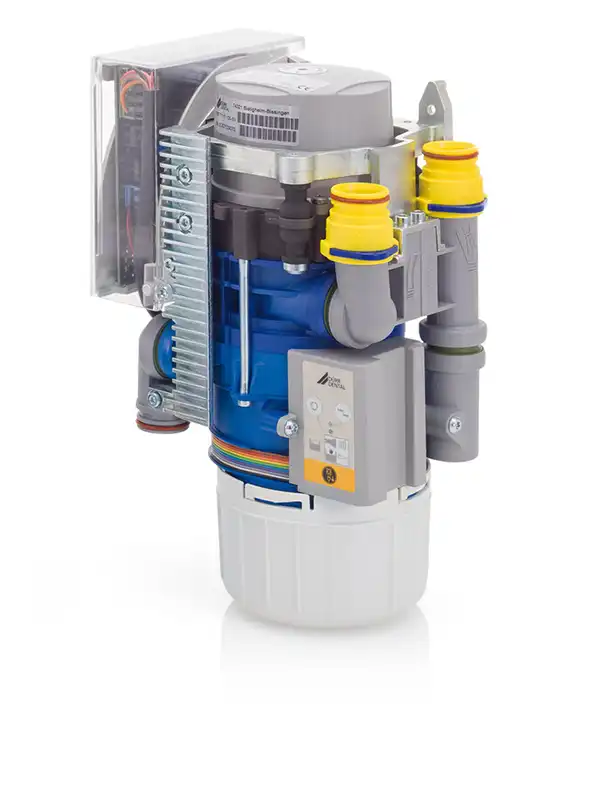

CAS 1 Combi-SeparatorVario rinsing unit
The task of the rinsing unit is to provide a constant supply of water (0.1 – 0.2 l/min) to the suction system during the suction process via the hose manifold or separation unit. This prevents coagulation of blood and the formation of difficult-to-dissolve deposits in the suction system, even during longer treatments. The system remains clean and functions reliably. A rinsing unit is needed in particular on treatment units where surgical procedures are carried out or prophylaxis treatments are performed.
